Aircraftscales.com a division of Jackson Aircraft Weighing Systems LLC provides Aircraft scales, Aircraft Weighing Equipment, Helicopter Scales and Large Jet Under Axle Weighing Systems for all your aircraft weighing needs.
Making Aircraft scales, helicopter scales, and aircraft weighing equipment easy to use, cost positive to own and highly reliable for the aviation and aerospace industry since 1993.
Aircraft scales, Airplane scales, Helicopter scales, UAV scales, Airline passenger scales, Airline baggage scales, and Aircraft weighing equipment for all applications.
M2400-5-25CS $11,995.00 Complete with laptop computer and software installed, calibrated and ready to use.

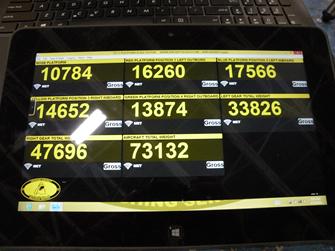

5 active channels, one for each scale with a total read out displayed via laptop computer. Read out shown is weighing a Boeing 737 aircraft.
M2400-5-25CS Quote: $11,995.00 + Shipping
5ea 25,000lb wireless cells, laptop computer, digital indication via USB, one inch mounting, 125,000lbs total system capacity, digital indication.
Wireless weighing is easy and fast, no more wires to deal with while weighing your aircraft. 300 ft range, 2.4 ghz transmission, USB computer link antenna displays the scale readings right on the laptop computer which is supplied. This system runs on laptop power so your battery life is only limited to your computer capability which is 3+ hours currently. Load cells are powered by standard AA batteries that are available anywhere. The life span on the batteries is currently 1+ years and they are updated at the time of calibration.
Standard application jack points on the C130 for under axle applications.

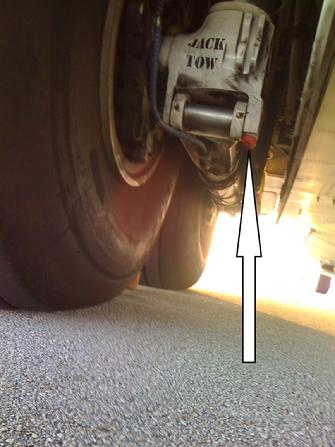

Primary main gear jack point can be used with our kits, the end user can interface the cells on their existing service jacks. Not all jacks are the same or have the weighing interface 1 inch mounting hole, if not, we can custom make jack adapters for your application.

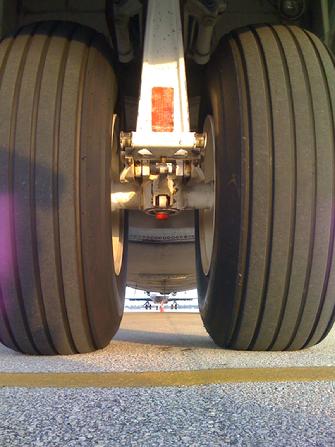

Typical nose gear jack point.
If you do not want to low point weigh your aircraft, we also make kits for wing/fuselage weighing applications just the same. Contact us with your requirements and we can advise based on your need and use. Again, if adapters are needed for your jacks, we can custom manufacture to fit your jacks with over the top adapters or inserts.
