M2400-3-250CS $9995.00 Three wireless cell kit for under axle or under wing applications.
M2400-3-250CS Quote: $9995.00 Under axle or wing and tail point, 60,000lb cell transducers for main wheels, one 25,000lb cell for the nose point,145,000lbs total system capacity, wireless USB antenna with laptop indication, laptop and all programing included and pre loaded with full calibration. This system has standard one inch mounting studs, we can also supply the 2.5 inch mounting studs for Columbus, Malabar and Regent jacks as well as metric studs for Hydro jacks.

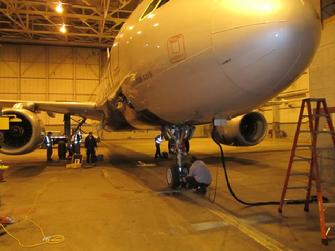

Standard cell is large enough for under axle or under wing as shown here. We also can supply jack adapters as an option to fit the cells to your wing or axle jacks.
Large format cell allow for large jack points like this 737 main wing point. The kit also is supplied with a small cell for nose or tail points.
Our wireless systems have many features and below are some of our specifications:
Sealed water-proofed wireless sensor network unit designed to integrate with load cells. Network capable allows several load cells to be active and used for differant applications.
IP65 NEMA4 enclosure measuring 59 x 76.6 x 30mm
A complete battery powered module running AA or CC standard batteries, provides up to 300 ft in range
Exceptionally low power for long battery life (up to 1 year and three months tested on AA batteries)
High speed 200 updates per second
High Resolution up to 1 part in 400,000 (18bit)
The integral antenna supplied on the module, USB antenna supplied for laptop computer, PC or tablet operation.
The high accuracy, low noise measurement deliver high resolution, low drift results which can be user calibrated over 9 points to enable linearization and to deliver results in user definable engineering units. The results can be transmitted at rates up to 200 per second to other devices such as handheld tablet, PC or the standard laptop computer supplied.
The module is configured and calibrated (either by applying known inputs or by table entry) on a PC connected to the base station.
The licence free 2.4GHz direct sequence spread spectrum (DSSS) radio technology offers high integrity, error free communications which can co-exist with other wireless technologies such as Wi-Fi, Bluetooth® and Zigbee®. FCC, ETSI and IC approvals.
