M2400-4-25CS Quote $8495.00 + Shipping
aircraft wireless weighing, weighing aircraft with wireless, wireless weighing, wireless aircraft scale
Four cell wireless kit with four 25,000 lb load cells, top of jack standard mounting, wireless system using a standard laptop computer.
aircraft weighing equipment, aircraft weighing, aircraft weighing scales
Laptop mounted USB antenna.
wireless aircraft weighing, wireless aircraft scale, wireless aircraft weighing
System runs on Windows and can be used on any windows computer from 98 up to X. True wireless, USB runs on the laptop power and the wireless modules run on standard AA batteries.
Four cell kit pack up is great for application requirening four weigh points or deployments requireing three cells, fourth cell becomes a spare.

Kit features universial power and can run on 110/60 or 220/50 Euro power and has an auto switching power supply.

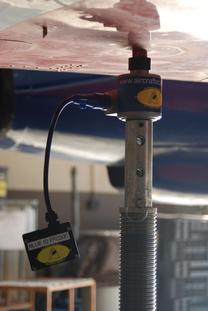

Standard one inch top of jack mounting will fit most jacks with the removable ram pad, or we can supply jack adapters if needed.

Click for our Jack adapter page.

Wireless aircraft weighing

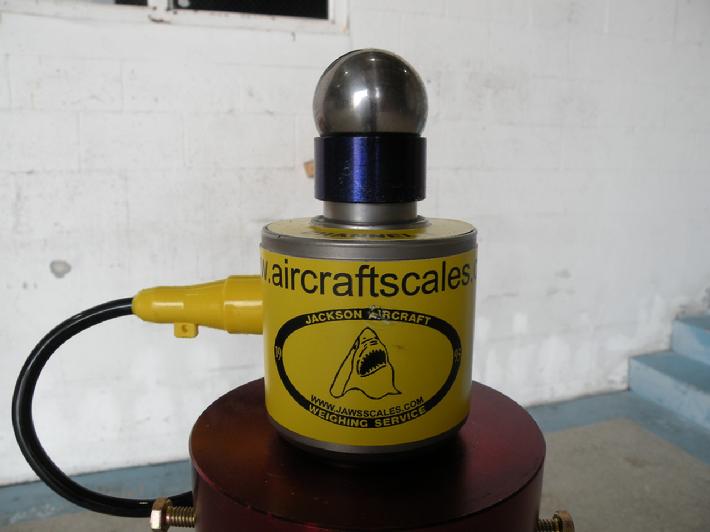

Standard wireless cell, module runs on two AA batteries so no chargers are necessary!
Our kits run off of a USB antenna package and come with a tripod, locate the unit on the floor next to your aircraft.
Our cells modules hang off the load cell so that there are no issues with interference with the air frame or surrounding structure.
Specifications
Capacity

t

Klb

10/25

Accuracy class

C2

C3

A5S

A5M

Approval

OIML R60 C3

Maximum number of
verification intervals

n max

2000

3000

5000

5000

Minimum load cell
verification interval

v min

Emax/5000

Emax/10000

Emax/15000

Emax/15000

Combined error

(%FS)

≤± 0.030

≤± 0.020

≤± 0.018

≤± 0.026

Creep

(%FS/30min)

≤± 0.024

≤± 0.016

≤± 0.012

≤± 0.017

Temperature effect
on sensitivity

(%FS/10℃)

≤± 0.017

≤± 0.011

≤± 0.009

≤± 0.013

Temperature effect
on zero

(%FS/10℃)

≤± 0.023

≤± 0.015

≤± 0.010

≤± 0.014

Output sensitivity

(mv/v)

2.0 ± 0.002

Input resistance

(Ω)

450 ± 4.5

Output resistance

(Ω)

480 ± 4.8

Insulation resistance

(MΩ)

≥ 5000(50VDC)

Zero balance

(%FS)

1.0

Temperature,
compensated

(℃)

-10~+40

Temperature,allowed

(℃)

-40~+65

Excitation, Recommended

(V)

5~12(DC)

Excitation,Max

(V)

18(DC)

Safe overload

(%FS)

150

Ultimate overload

(%FS)

300

Outline Dimension mm(inch)

Capacity t(Klb)
D
D1
D2

H

H1
H2
H3
L
M

10,25
(10,25,50)


(2.87)

(1.25)

(2.28)


 4.00 inches with cell top installed


(1.5)

(0.31)

(0.10)

(2.52)

1/2-20UNF
Standard one inch stud supplied

Call: 561.281.6179   sales@aircraftscales.com
