M2400-3-50CSLC Quote: $9995.00 Three large format wireless jack point 50,000lb cell transducers, one inch mounting, 150,000lbs total system capacity, wireless USB antenna with laptop indication, laptop and all programing included and pre loaded with full calibration. This system has standard one inch mounting studs, we can also supply the 2.5 inch mounting studs for Columbus, Malabar and Regent jacks as well as metric studs for Hydro jacks.
Laptop read out, capable of MAP mode and full print out capability.
Wireless cells are large format that captures large aircraft jack points. Wireless cells are easy to use and have no wires or cables, modules hang under for airframe clearance and can be directed for reception.

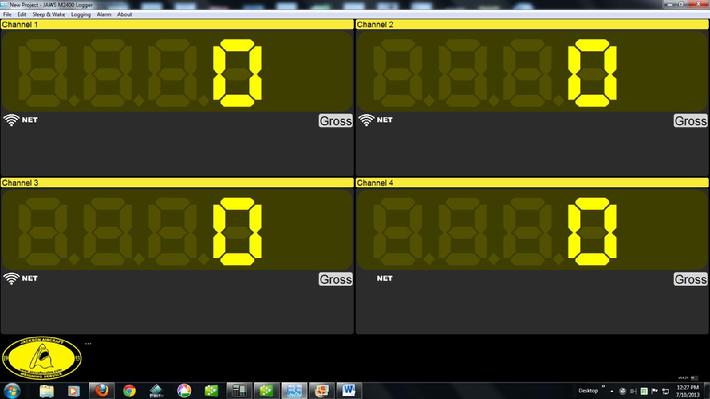

M2400 Jaws software provides full scale output reading with large format indicators. Each channel is available to read as well as total of all indicators. Software comes preloaded on a standard laptop included with the kit, and can be loaded on the customers laptop or any PC running WinXP, Win7, or Win8. Software can also be ran on a windows 8 based tablet running the full windows 32 bit program. System software will not run on Android, Surface RT or Ipad machines.
Our -50CSLC wireless load cells are for large aircraft use, Gulfstream GIII to 650, EMB 145, Global 6000, Regional jets and large jets like this 737 pictured.
Our cells come with standard one inch studs for jack mounting. If you do not have a one inch hole, we have jack adapters as shown as an option. Our adapters are available in two sizes, large (shown here) and small. Check your jack top rams for the interface and hole. If you have a large hole 1.750 or 2.50 inch in size we can machine custom mounting studs for your interface if a jack adapter will not work for your operation.
Our wireless systems have many features and below are some of our specifications:
Sealed water-proofed wireless sensor network unit designed to integrate with load cells. Network capable allows several load cells to be active and used for differant applications.
IP65 NEMA4 enclosure measuring 59 x 76.6 x 30mm
A complete battery powered module running AA or CC standard batteries, provides up to 300 ft in range
Exceptionally low power for long battery life (up to 1 year and three months tested on AA batteries)
High speed 200 updates per second
High Resolution up to 1 part in 400,000 (18bit)
The integral antenna supplied on the module, USB antenna supplied for laptop computer, PC or tablet operation.
The high accuracy, low noise measurement deliver high resolution, low drift results which can be user calibrated over 9 points to enable linearization and to deliver results in user definable engineering units. The results can be transmitted at rates up to 200 per second to other devices such as handheld tablet, PC or the standard laptop computer supplied.
The module is configured and calibrated (either by applying known inputs or by table entry) on a PC connected to the base station.
The licence free 2.4GHz direct sequence spread spectrum (DSSS) radio technology offers high integrity, error free communications which can co-exist with other wireless technologies such as Wi-Fi, Bluetooth® and Zigbee®. FCC, ETSI and IC approvals.
General Radio
Parameter
Min
Typical
Max
Units
Licence
Licence Excempt
Modulation Method
MS (QPSK)
Radio Type
Transceiver (2 way)
Data Type
250
K bits/sec
Radio Freqeuncy
2.4000
2.4835
GHz
Power
1
mw
Integral Antenna
100 (325)
Metres (feet) **
External Antenna
200 (650)
Metres (feet) **
Channels (DSSS)
16
Electrical
Battery Supply Voltage
2.1
3.0
3.6
VDC
Environmental
IP Rating
IP65 / NEMA 4
Operating Temperature Range*
-40
-
+65*
°C
Storage Temperature Range
-40
-
+85
°C
Humidity
0
95%
RH
Specifications with 100R bridge, 2.25mV/V at 3V supply at 25 Deg C
Strain Gauge excitation System
4 wire
Strain gauge Excitation Voltage
4.5
5
5.25
VDC
Strain Gauge Drive Capacity
85
-
5000
Ohms
Maximum Gauge Sensitivity (FR)
3.2
±mv/V
Offset Temperature Stability
1
4
ppm/C
Gain Temperature
3
5
ppm/C
Offset Stability with Time
20
80
ppm of FR (1)
Gain Stability with Time
30
ppm of FR (2)
Non Linearity before Linearization
5
25
ppm of FR
Internal Resolution
16,000,000/24
Resolution/Bits
Noise Free where Sample Time < 10mS
50,000/15.5
Resolution/Bits
Noise Free where Sample Time < 50mS
65,000/16
Resolution/Bits
Noise Free where Sample Time < 100mS
150,000/17.25
Resolution/Bits
Noise Free where Sample Time < 1000mS
250,000/18
Resolution/Bits
Noise Free where Sample Time > 1000mS
400,000/18.75
Resolution/Bits
$8995.00 complete wireless system, calibrated and ready to work! Order yours today. Shipping cost is not included in our quotes.
