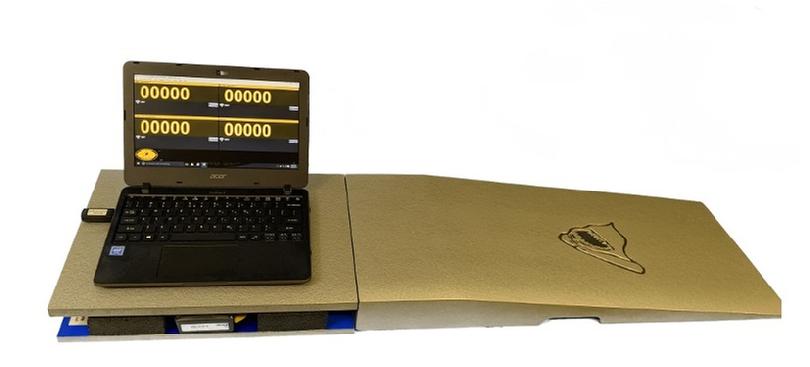

M2400-3-10KP Wireless aircraft scale, three wireless 10,000lb platforms with 30 inch long wood plank type ramps for easy pull ups. USB antenna, laptop computer included running Win 10
Wireless Wireless Laptop unit, 10,000lb platforms with 30 inch aluminum ramps, NIST traceable calibration
Optional Over Run Ends are Now Available
Over Run Ends: Easy and Safe to Use
Over Run Ends: Easy and Safe to Use
Introduction
When it comes to accurately weighing your aircraft, our "Over Run End" option allows for easy roll off onto the over run vs roll down the ramp and back up the ramp. Simply roll onto the over run, zero your reading and roll back on the scale in one easy step to take your weights. Over runs allow for multiple on and off operations with out rolling down the ramps or off the scales.
User-Friendly Design
Intuitive Interface
The Over Run Ends features an intuitive interface that requires minimal training. Just place the over run ends at the rear of the scale on the ground, the over run is the same size and height as the scale system.
Step-by-Step Instructions
Accompanied by comprehensive step-by-step instructions, our scale makes setup and operation a breeze. The manual provides detailed guidance to ensure you get the most accurate results every time.
Safety Features
Robust Construction
Constructed with high-quality aluminum cast materials, the Over Run End is designed to withstand rigorous use. Its robust construction ensures long-lasting durability and reliability, minimizing the risk of damage or an uncommanded roll off event.
Safe Operation
Safety is paramount, and our scale is engineered with features to protect both the user and the equipment. Powder coated surfaces, overload protection, and our over run end options all contribute to a safe operating environment.

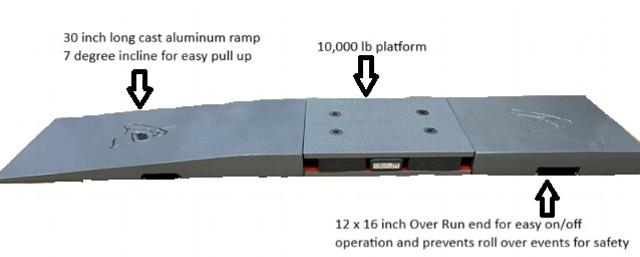

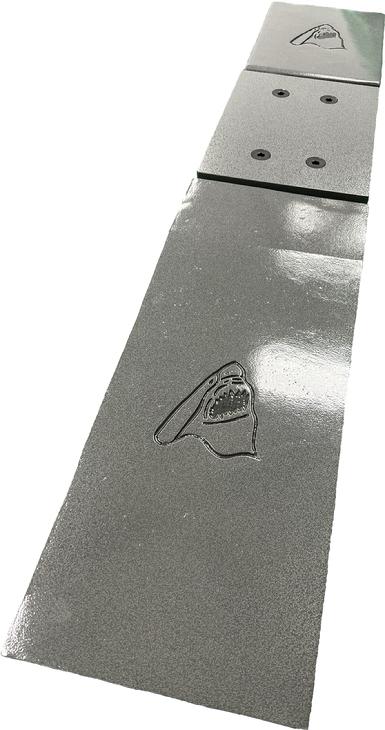

Optional over run ends are available as shown here, allows for roll on and off scale with out rolling down the main ramp, also adds safety for any over run events.

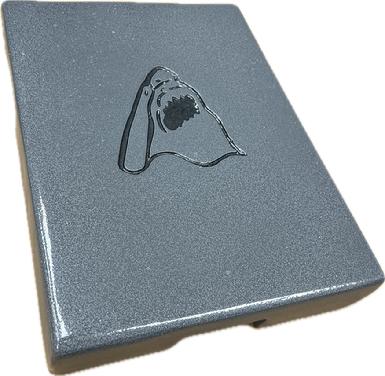

Cast aluminum over runs are powder coated and allow for extra room for possible over shoot, extra chocking room and on and off scale operations.
Wireless operation is accomplished with our USB antenna powered by a standard laptop computer running Win8. Platforms are self powered and have over a year of power on board, computer uses its on board battery supply so your system is completly wireless.
Small piston aircraft or medium jets like this Lear are easily weighed using our wireless kits. Dual wheels? No problem, our kit can weigh dual wheel aircraft using a single platfrorm as shown with one wheel off the side.
M2400 Series Aircraft Platform Scale
M2400 Series Aircraft Platform Scale
About the M2400 Series
The M2400 Series Aircraft Platform Scale is designed for accurate weighing of aircraft. Its robust design ensures reliability and precision under all conditions.
Features
High precision load cells
Durable platform with cast aluminum ramps
Easy-to-read Laptop computer with digital display
Wireless data transmission
Specifications
Model
Capacity
Platform Size
M2400-3-10KP
10,000 lb platforms
12 x 16 x 2.75 inches
M2400-3-15KP
15,000 lb platforms
12 x 16 x 2.75 inches
Our wireless systems have many features and below are some of our specifications:
Sealed water-proofed wireless sensor network unit designed to integrate with load cells. Network capable allows several load cells to be active and used for differant applications.
IP65 NEMA4 enclosure measuring 59 x 76.6 x 30mm
A complete battery powered module running AA or CC standard batteries, provides up to 300 ft in range
Exceptionally low power for long battery life (up to 1 year and three months tested on AA batteries)
High speed 200 updates per second
High Resolution up to 1 part in 400,000 (18bit)
The integral antenna supplied on the module, USB antenna supplied for laptop computer, PC or tablet operation.
The high accuracy, low noise measurement deliver high resolution, low drift results which can be user calibrated over 9 points to enable linearization and to deliver results in user definable engineering units. The results can be transmitted at rates up to 200 per second to other devices such as handheld tablet, PC or the standard laptop computer supplied.
The module is configured and calibrated (either by applying known inputs or by table entry) on a PC connected to the base station.
The licence free 2.4GHz direct sequence spread spectrum (DSSS) radio technology offers high integrity, error free communications which can co-exist with other wireless technologies such as Wi-Fi, Bluetooth® and Zigbee®. FCC, ETSI and IC approvals.
General Radio
Parameter
Min
Typical
Max
Units
Licence
Licence Excempt
Modulation Method
MS (QPSK)
Radio Type
Transceiver (2 way)
Data Type
250
K bits/sec
Radio Freqeuncy
2.4000
2.4835
GHz
Power
1
mw
Integral Antenna
100 (325)
Metres (feet) **
External Antenna
200 (650)
Metres (feet) **
Channels (DSSS)
16
Electrical
Battery Supply Voltage
2.1
3.0
3.6
VDC
Environmental
IP Rating
IP65 / NEMA 4
Operating Temperature Range*
-40
-
+65*
°C
Storage Temperature Range
-40
-
+85
°C
Humidity
0
95%
RH
Specifications with 100R bridge, 2.25mV/V at 3V supply at 25 Deg C
