M2000-3-50CSLC Three large format jack point 50,000lb cell transducers, one inch mounting, 150,000lbs total system capacity, digital indication. This system has standard one inch mounting studs, we can also supply the 2.5 inch mounting studs for Columbus, Malabar and Regent jacks as well as metric studs for Hydro jacks.
Weighing a GV, how to weigh a GV, how to weigh a gulfstream jet, GV, Gulfstream GV being weighed
Standard one inch mounting as shown using a Tronair jack weighing a GV aircraft.
Aircraft scales, Larry Jackson, Jackson Aircraft, Jackson Aircraft Weighing Service, www.aircraftscales.com, www.jawsscales.com
Our large format cells assist with weighing on the Gulfstream aircraft high nose attitude that must be obtained to level. Deep jack point concave load tops CNC machined into our cells insure total capture of the jack point in the cup.
Leveling a GV, Leveling a gulfstream GV
GV nose point cell to jack point.
Features: Units conversion: lbs/kg Resolution: +/- 520000 A/D internal counts Sampling rate: 100 times a second per channel

Span stability: 2ppm/deg C Zero Stability: 5nV/deg C

Linearity correction: 10 span entries

Calibration Method: calibration through software stored in flash memory Calibration Sealing: physical seal or Class 1 Audit Trail system, password protected

Tare: Keyboard and scale tare, multiple tare id's can be stored in memory Time and Date: Y2K compliant time/date clock, internal battery backup Power On: selectable on/off switch Display: Size: 6 digit, 7 segment 1" red LED Filtering: Fast Step quick response algorithm adjustable filter

Modes: display from CH1, CH2, CH3, Scan, and total of all channels.

Electrical: Power Requirements: 110VAC and 220 Euro, also 12VDC 1A Temperature Range: -10deg C to + 40deg C

RFI Protection: filtered signal, excitation and sense lines Approvals: Canada: Class III/IIIHD 10000 USA: NTEP Class III/IIIl 10000

NIST traceable certification to calibration master.

Two year warranty on parts and labor, calibration on sale. 10% charge on returned sets for inspection, certification, calibration checks and restocking.

Cell Specifications: · Machined from steel to receive aircraft jack points · Calibrated to customer specifications · Capacities are available in 5,000, 10,000, 15,000, 25,000, 30,000, 50,000 and 100,000lb cells.

Accuracy: 1/10th of 1% full span or better (factory calibration) 1/4 of 1% · One inch mounting on standard aircraft jacks.

Additional adapter mountings are available as an option, please call us to determine your correct jack mounting requirements.

Larry Jackson 561-281-6179 larryjackson@jawsscales.com
aircraft weighing, helicopter weighing, helicopter scales, helicopter weighing kit, helicopter weighing equipment, H60 Blackhawk scales, H60 Blackhawk weighing equipment, H60 Blackhawk weighing kit, weighing aircraft, aircraft scale rental, large jet weighing, aircraft scales, large jet aircraft scales, large jet weighing, weighing a large jet, weighing an A320, weighing equipment for airbus a320, airbus a320 weighing, rental scales, rental aircraft scales, leasing aircraft weighing equipment

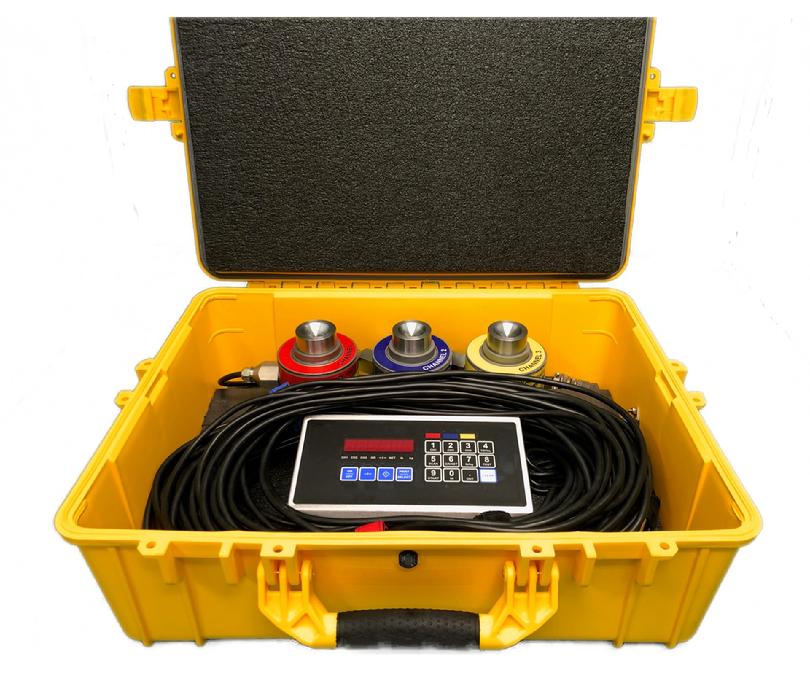

Our kits can come in Black or Yellow cases as show, all our cases are Pelican brand for high quality and long life. This kit is what you will receive, it will come with full calibration traceable to NIST and it is ready to work right out of the box!
Special projects are no problem, we can custom build a kit to meet your specifications and calibration requirements.

Contact Larry Jackson for infromation and ordering at: larryjackson@jawsscales.com 561-281-6179
