Aircraftscales.com a division of Jackson Aircraft Weighing Systems LLC provides Aircraft scales, Aircraft Weighing Equipment, Helicopter Scales and Large Jet Under Axle Weighing Systems for all your aircraft weighing needs.
Aircraft scales, helicopter scales, and aircraft weighing equipment for your aviation and aerospace weighing needs.
M2400-3-250CS wireless aircraft kit $11,495.00 This is for the scale only.
M2400-3-250CS wireless kit with full set of jacks and adapters for under axle 737 and A320 aircraft complete ready to weigh $23,995.00 wireless.
737 Series jets are easy to weigh with our under axle M2000-3-250CS system, this jet was weighed in less than 50 minutes, that included setting up the jacks and scale!
M2400-3-250CS is our wireless laptop system, each cell is wireless and the indication is viewed off of a laptop computer which is included. There are two display options, standard digital read out and the MAP view as shown. Both are live reading directly to the laptop from the wireless cells.
We are moving to new jacks for our under axle applications. Here is one of our new air assisted hydraulic jacks being used for aircraft weighing under axle.
Our two stage jacks have a capacity to lift 50,000 lbs on the first stage and second stage. Higher capacity jacks are available on request for other aircraft types.

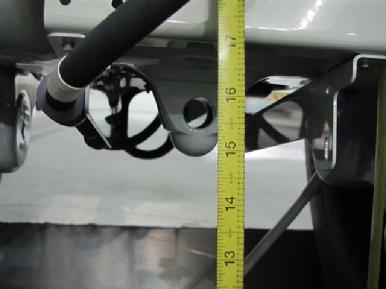

First we will want to confirm your main axle point height, there is a differance between new and used tires as well as which type and ply tire you are using. This is important, so as to determine if an adapter will be needed.
Adapters are used for the main jacks to go from a 737 to an A320. Our line of scales and jacks are made to enable the user to expand the system and add cells and adapters to fit other types of aircraft.
80 ton two stage air jack makes the weighing operation easy, air operated on shop air, controlled lift and leveling.

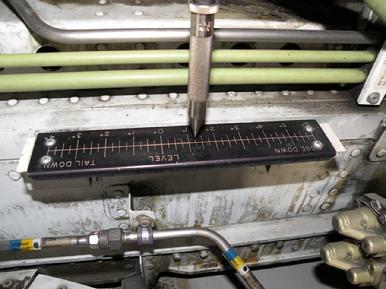

Checking the level is easy, just plumb bob and check on the right side. Keep in mind, Boeing has an "out of level" chart for correction if you can not get the nose high enough. All you have to do is side to side, if you want to raise the nose to level, then you will use adapters and shim plates which are easy to install, but not necessary. Check your manual for your full procedures and charts.
