Aircraft Weighing Equipment, Kits, & Calibration Services for Aviation
AircraftScales.com specializes exclusively in aircraft weighing equipment and
FAA-compliant weight and balance systems. Our platform scales, top of jack weighing
systems, under axle weighing systems UAWS, and calibration services are designed specifically
for aviation applications.
Aircraft Weighing Equipment for Fixed-Wing & Rotorcraft, Space, EVTOL and UAV/UAS
We provide complete aircraft weighing solutions for general aviation,
business aviation, helicopters, and transport category aircraft.
All systems are supported with aviation-specific calibration procedures.
Aircraft Platform Scales
Precision wheel-on platform scale systems for accurate aircraft weight
and center-of-gravity determination.
We feature 5,000 lb, 10,000 lb (most popular) and 15,000 lb platforms, light weight, easy to use and they come with heavy duty 30 inch long cast aluminum ramps.
Aircraft Top of Jack Weighing Systems
Top-of-jack load cell systems for aircraft weight and balance using
certified jack points.
We have several models available, every thing from 5,000 lb per cell kits up to 100,000 lb per cell kits, in wireless and also wired configurations.
Large Aircraft Under Axle Weighing Systems (UAWS)
Heavy aircraft weighing systems designed for airline, military,
and MRO environments.
We currently offer turn key solutions for large jet operators, our system is complete, scale, adapters and jacks.
Aircraft Scale Calibration & Compliance
Aircraft weighing systems require aviation-specific calibration procedures.
We provide NIST-traceable aircraft scale calibration using certified master
load cells, force UTM machines, and procedures aligned with industry standars
We support aircraft weighing systems manufactured by Intercomp, Vishay,
Road Runner, and other aviation-qualified manufacturers.
Aircraft Weighing Is Not Industrial Weighing
Aircraft weighing equipment and calibration procedures are fundamentally
different from industrial scale applications. Many times Industrial scale calibration
laboratories are not qualified for aircraft weight and balance systems, they are not trained by the aircraft scale OEM, do not have OEM recommended test stands and are not knowledgeable in the process.
Why aircraft scale calibration differs from industrial calibration? In general, Industrial scales, race car scales, and other non aviation equipment has a tolerance of 1%. Aviation scales must maintain a tolerance of 1/10th of 1% which is 10 times more accurate and has a higher resolution to supply accurate readings.
Talk to an Aircraft Weighing Specialist
If you require aircraft weighing equipment, calibration services,
or technical guidance, contact sales@aircraftScales.com for aviation-specific
expertise.

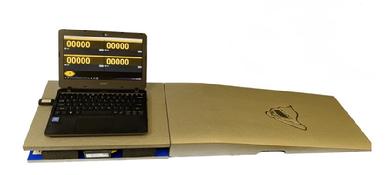

M2400 Series Aircraft Platform Scale
M2400 Series Aircraft Platform Scale
About the M2400 Series
The M2400 Series Aircraft Platform Scale is designed for accurate weighing of aircraft. Its robust design ensures reliability and precision under all conditions.
Features
High precision load cells
Durable platform with cast aluminum ramps
Easy-to-read Laptop computer with digital display
Wireless data transmission
Specifications
Model
Capacity
Platform Size
M2400-3-10KP
10,000 lb platforms
12 x 16 x 2.75 inches
M2400-3-15KP
15,000 lb platforms
12 x 16 x 2.75 inches
M2400 Series Aircraft Top of Jack Scale
M2400 Series Aircraft Top of Jack Scale
About the M2400 Series
The M2400 Series Aircraft Top of Jack Scale is designed for accurate weighing of aircraft. Its robust design ensures reliability and precision under all conditions.
Features
High precision wireless load cells
Durable wireless
Easy-to-read Laptop computer with digital display
Wireless data can be printed on your own printer
Specifications
Model
Capacity
Mounting
M2400-3-10CS
10,000 lb Top of Jack Wireless Cells
Standard 1 inch mounting
M2400-3-15CS
15,000 lb Top of Jack Wireless Cells
Standard 1 inch mounting
M2400-3-25CS
25,000 lb Top of Jack Wireless Cells
Standard 1 inch mounting
M2400-3-50CS
50,000 lb Top of Jack Wireless Cells
Standard 1 inch mounting
Top of jack mounting via the one inch provision on your jacks. If you do not have the mounting provision you may require optional adapters.

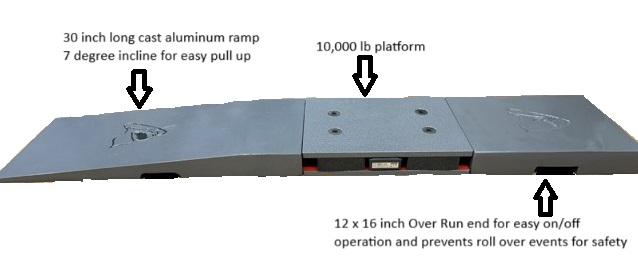

Optional Over Run Ends are Now Available
Our new J2400 series of jacks works great for under axle weighing, they can also be used as a maintenance jack with our adapters. CLICK THE IMAGE TO GO TO OUR JACK PAGE

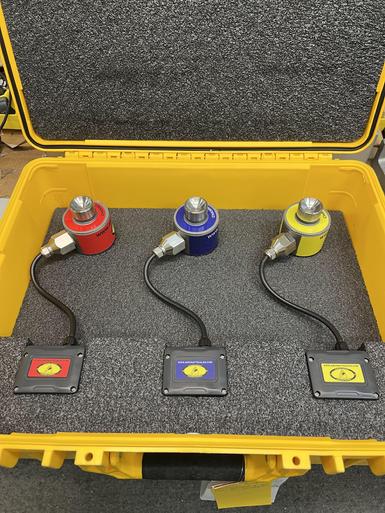

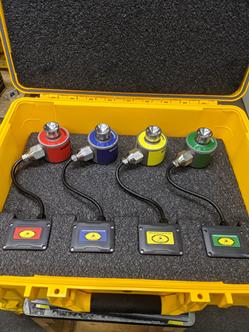

We carry 3 and 4 cell kits, other cell quantities are available
Our HH2400 series indicator uses 2.4 Ghz transmission, has excellent range and is so easy to use.

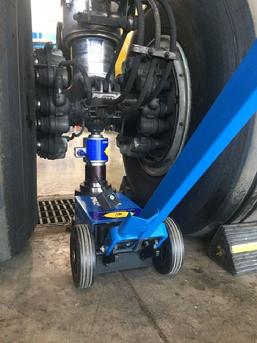

Large Jet Under Axle Weighing Systems

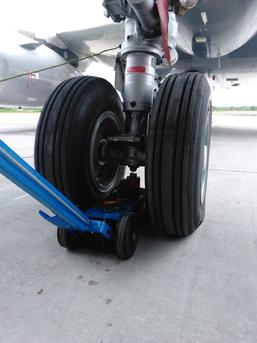

Weighing a large jet has never been so easy. You can position the equipment and conduct the weighing in place, no need to move the aircraft, place equipment and secure a tug to tow the aircraft into position. Our equipment gives many airlines and MRO operations a cost effective choice to conduct weighing.
Our air operated, two stage lifting jacks are machined to receive our load cells. Easy height adjustment using our adapter sets makes your jacks capable of lifting several types of aircraft.
Gen II Large Jet UAWS Under Axle Weighing Systems
Gen II Large Jet UAWS Under Axle Weighing Systems
We have our Gen II large jet UAWS Under Axle Weighing Systems and our Flyaway (fly away) maintenance jacks for large jets.
Click our link to go to our jack page
Click here for our latest offerings of under axle jacks.

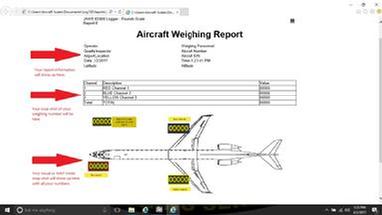

Our laptop computer wireless units can produce a full screen shot and printed report. Live tiles shows all scales in use as well as your total weight.
Our AW-3-10HH Top of jack system is great for travel, it is so good it is in our rental pool for its great strength and shipping ability

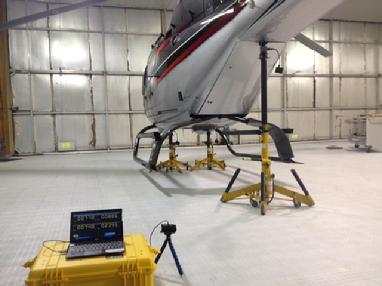

Airbus EC120 being weighed on our M2400 wireless series scale system.

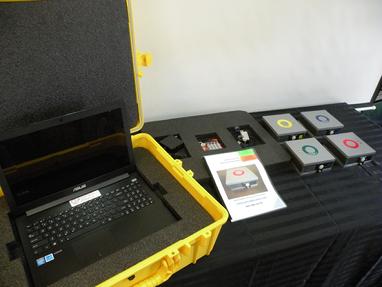

M2400 Series Wireless Scale Systems
M2400 Series Wireless Scale Systems
Available Sizes
The M2400 series wireless scale systems are available in many sizes, from helicopter applications all the way up to the Boeing 737.
JAWS 100 1.2.2 Software Package
Our new JAWS 100 1.2.2 software package is loaded with features, including:
Full screen display
Full programming capability
Advanced math functions
Capability of connecting to your wireless network
Wireless Interface
The wireless interface allows the user to connect to your wireless network in your facility. You can now use your connected iPad, iPhone, or Android device to see your scale readings, with multiple users accessing the data simultaneously.
UAV/UAS/DRONE Scales are now in full production
UAV/UAS/DRONE Wireless Weighing Pack Up Systems
UAV/UAS/DRONE Wireless Weighing Pack Up Systems
Now in Full Production
Our UAV/UAS/DRONE wireless weighing pack up systems are now in full production.
FAA 55+/- Rule Compliance
Meet the FAA 55+/- rule in weight, certify for airworthiness, and certify for exemptions.
WWW.AIRCRAFTSCALES.COM
WWW.AIRCRAFTSCALES.COM is an industry-leading scale manufacturer for all manufacturers and military unmanned aircraft applications. Call us today to discuss your needs and specifications—chances are that we have a scale system suited for your operations.
Check out our new Wireless Aircraft Scales, Laptop Computer included.
Always check our web sites "Contact Us" pages for our shipping and billing address: Jackson Aircraft Weighing Systems 8380 Resource Dr Ste#1Riviera Beach, FL 33404
